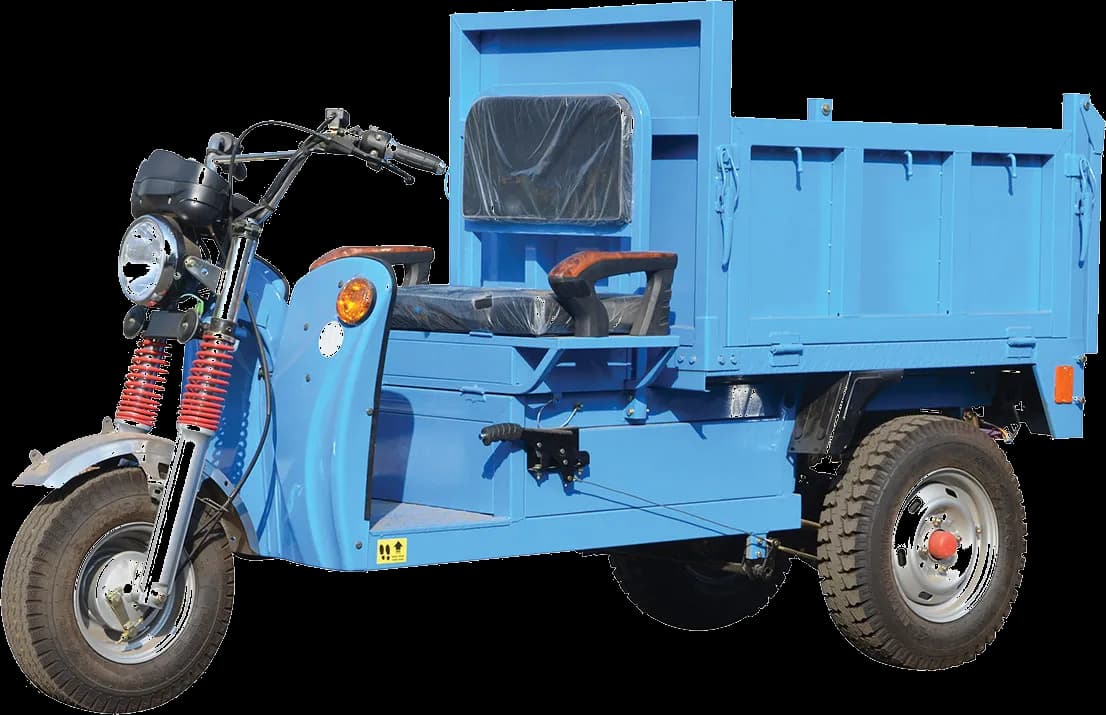

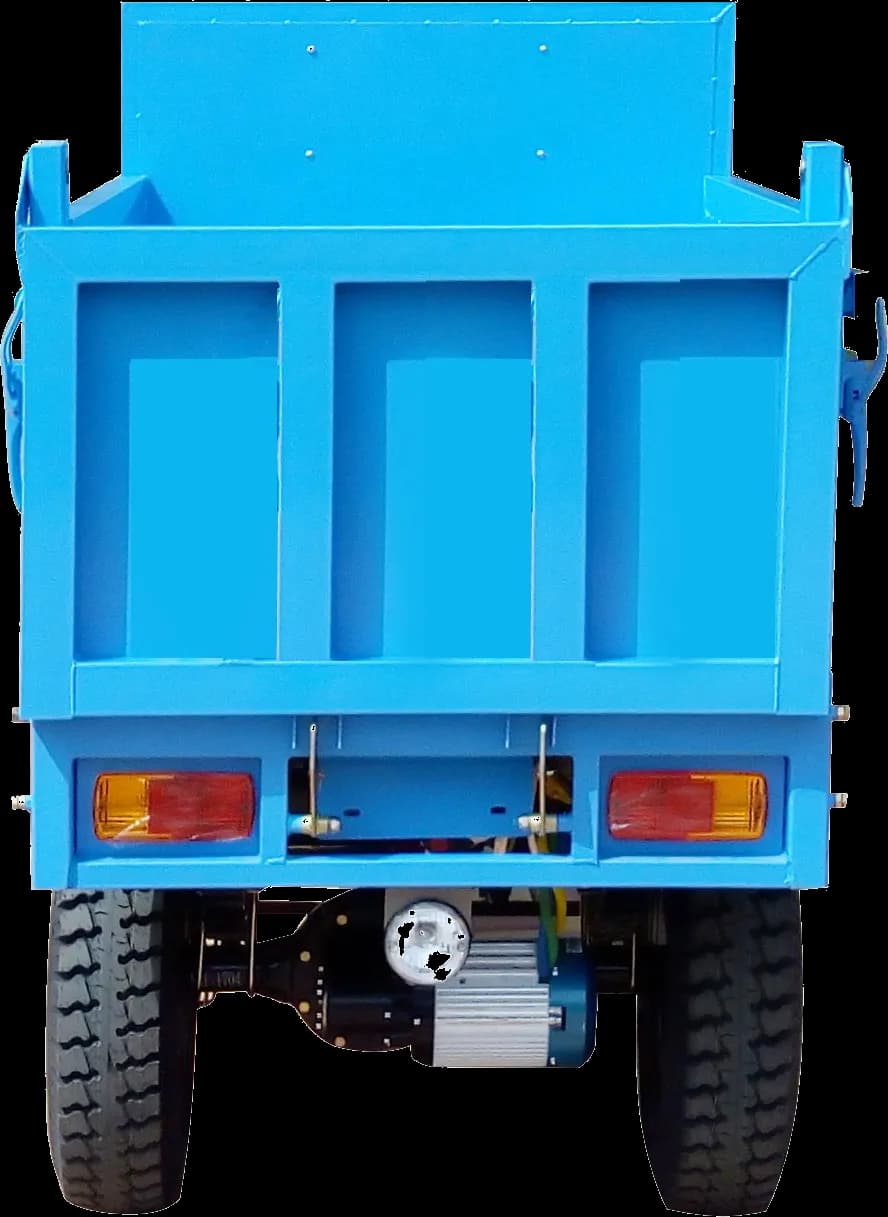

KPTECP1
E-Cart without Hydraulic Lift
| Specification | Unit | Value |
|---|---|---|
| Brand Name | -- | K-POWER evc |
| Model | -- | KPTECP1 |
| Vehicle Category | -- | E_cart |
| Vehicle Roof | -- | Open |
| Fuel Type | -- | Battery Operated |
| Overall Dimensions | MM | 2765 x 975 x 1370 |
| Wheel Base | MM | 1990 |
| Ground Clearance | MM | 190 |
| Payload | Kg | 310 |
| Cargo Box - Open type | MM | 1300 x 900 x 500 |
| Cargo Box - Close type | mm | Not Applicable |
| Cargo Box Lifting | -- | Not Applicable |
| Max Speed | Kmph | 25 |
| Typical Driving Range | Km / Charge | 120 Kms / Per Charge |
| Gradeability | Degree | 7 |
| Front Tyre | -- | 4.50-10, 8 ply |
| Rear Tyre | -- | 165D 13, 8 ply |
| Battery Type | -- | Lead Acid |
| Batteries | Nos. | 6 |
| Battery Voltage | V | 72 ( 12 V * 6 ) |
| Battery Capacity | Kwh | 7.2 |
| Charging Time | Hours | 5 to 6 Hrs. |
| Charging System | Vac / Amp | 220-230 Volt AC / 15 Amp |
| Suspension - Front | -- | Helical Spring + Shock Absorver |
| Suspension - Rear | -- | Rigid Axle with Leaf Spring |
| Motor Power | Watt | Brushless DC Motor 1800 Watt |
| Reverse Buzzer | -- | Yes |
| Driving Mode F-N-R | -- | Yes |
| Standard Accessories | -- | Charger, First Aid Kit, Fire Extinguisher |
