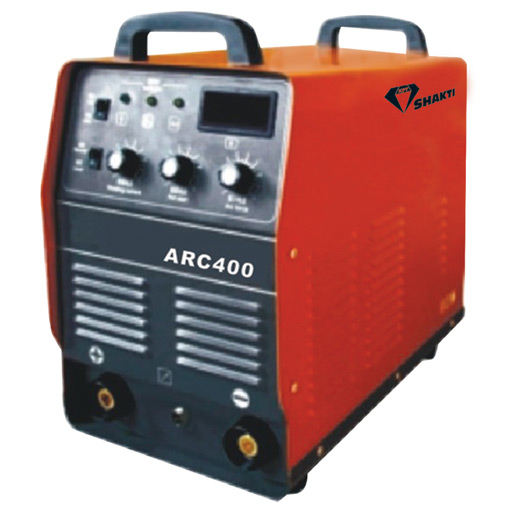

SA400
400A Arc Welding Machine
| Model No. | SA400 |
|---|---|
| Specification | 400A Arc Welding Machine |
| Rated Input | AC415V+/- 15% Three phase, 50/60HZ |
| Rated Input Current | 26.3Amp |
| Rated Output | 400/36Amp/V |
| Welding Current Range | 20-400Amp |
| Arc Force Current Range | 0-200Amp |
| No-Load Voltage | 68V |
| Duty Cycle I max (40degC) | 60% |
| Duty Cycle Amp 100%(40degC) | 310A |
| Efficiency | 85% |
| Power Factor | 0.93 |
| Protection Class | IP21S |
| Insulation Class | F |
| Electrode Diameter | 2.5 – 5.0mm |
| Dimension | 530x270x430mm |
| Net Weight | 25Kg |
