Twin Lobe Blowers

The Principal of Twin Lobe

The blower consists of two rotors mounted on parallel shafts inside a housing. A pair of gears causes the rotors to rotate in opposite directions. As each rotor lobe passes over the inlet, it traps a constant volume of air, carries it around the housing, and delivers it to the outlet. The displacement is positive, and the volume of air remains constant. No pressure is developed inside the blower itself; instead, pressure is created at the discharge side due to system load. The power required is proportional to the pressure generated.

Twin Lobe Blowers

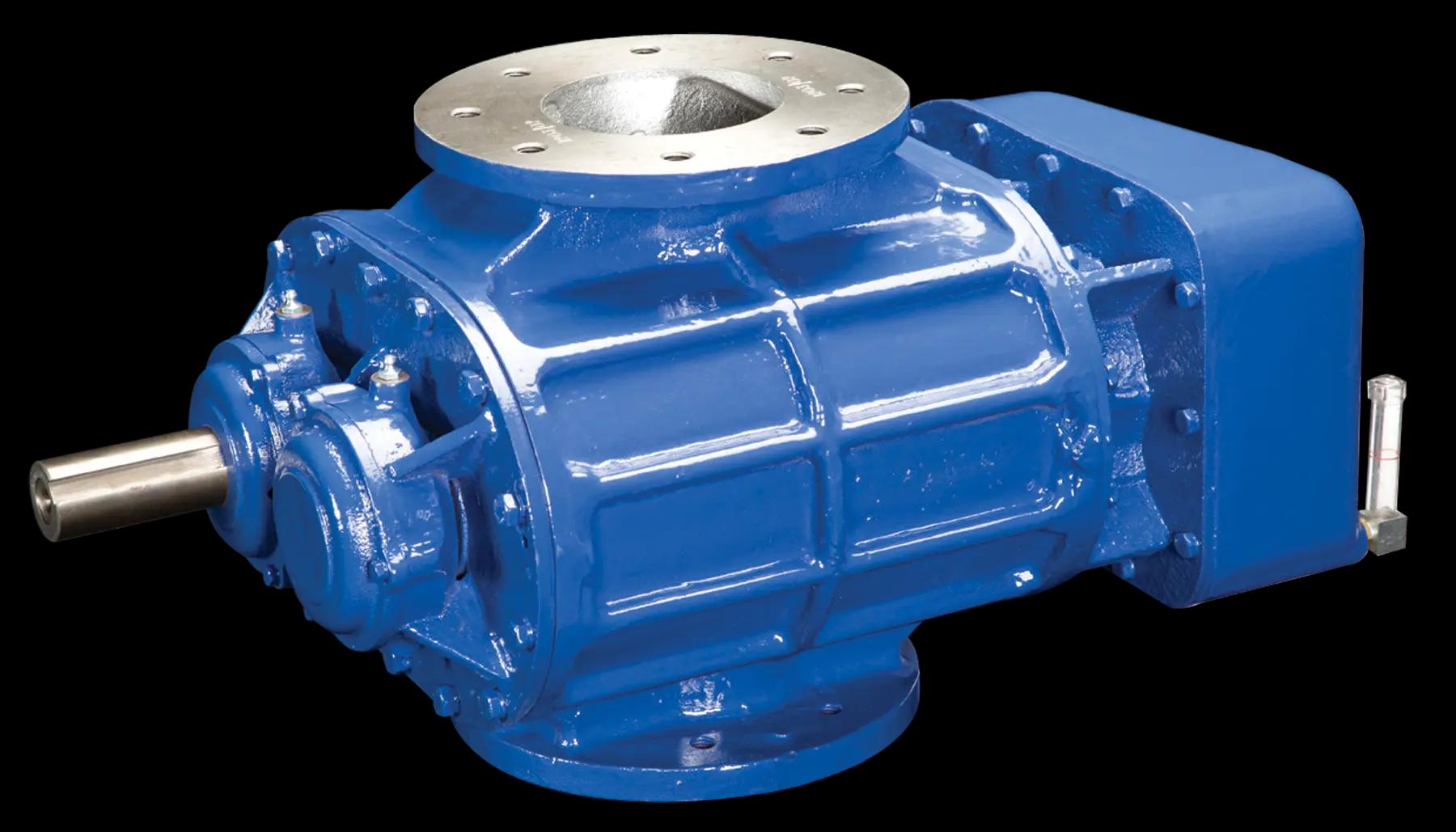

KPT Twin Lobe Blower

Twin Lobe Blowers

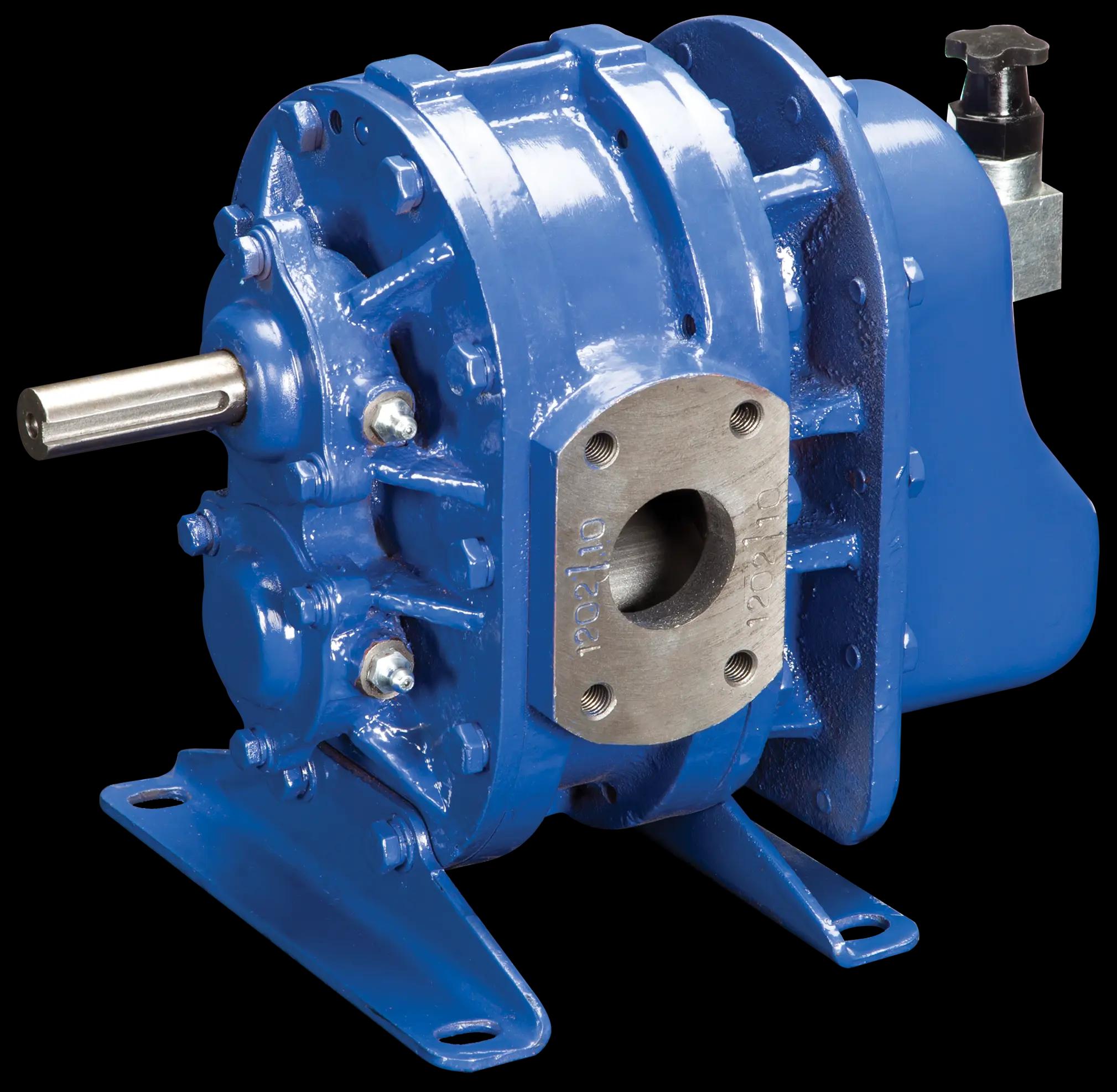

KPT Twin Lobe Blower

Special Features of Twin Lobe Blowers

  • Non pulsating & oil free air

  • All machines are air cooled

  • Suitable for handling air / gas

  • Vertical & horizontal air flow applications

  • Integral lobe & shaft for better performance

  • Dynamically balanced rotor to ensure vibration free operation

  • PTFE strips on rotor lobe to minimize back flow

  • Stainless steel / Electroplated blowers for special applications

  • Custom built Acoustic Hoods for sound abetment.

  • Capacity 20 - 15000 cum/hour
  • Pressure up to 1000 m bar (10,000 mmwc)

  • Vaccum up to 500 m bar (5000 mmwc)

Applications of Twin Lobe Blowers

Pneumatic Conveying Systems

Pneumatic Conveying Systems

Slurry Agitation

Slurry Agitation

Silo Fluidization

Silo Fluidization

Gas Boosting

Gas Boosting

Centralized Vacuum Cleaning Systems

Centralized Vacuum Cleaning Systems

High Altitude Pressurized Chambers

High Altitude Pressurized Chambers

Bulk Material Handling Applications

Bulk Material Handling Applications

Bio Gas Handling

Bio Gas Handling

Boiler Fluidized Bed Combustion

Boiler Fluidized Bed Combustion

Aeration

Aeration

Sulphitation Process

Sulphitation Process

Air Knife Applications

Air Knife Applications

Agitation in Reactors

Agitation in Reactors

Conveying of Raw Material and Process

Conveying of Raw Material and Process

Products

SR007
Max Speed
3,697.36 RPM
Air Flow
10 - 134 m³/h
Max Pressure
600 mbar
SR010
Max Speed
3,549.24 RPM
Air Flow
12 - 190 m³/h
Max Pressure
700 mbar
SR015
Max Speed
4,025.86 RPM
Air Flow
39 - 329 m³/h
Max Pressure
1,000 mbar
SR017
Max Speed
4,022.38 RPM
Air Flow
7 - 372 m³/h
Max Pressure
700 mbar
SR023
Max Speed
4,013.86 RPM
Air Flow
26 - 496 m³/h
Max Pressure
500 mbar
SR035
Max Speed
4,018.53 RPM
Air Flow
74 - 748 m³/h
Max Pressure
1,000 mbar
SR044
Max Speed
4,012.96 RPM
Air Flow
103 - 967 m³/h
Max Pressure
800 mbar
SR052
Max Speed
4,012.28 RPM
Air Flow
127 - 1,144 m³/h
Max Pressure
700 mbar
SR060
Max Speed
3,500 RPM
Air Flow
95 - 9,710 m³/h
Max Pressure
1,000 mbar
SR069
Max Speed
3,511.18 RPM
Air Flow
179 - 1,340 m³/h
Max Pressure
1,000 mbar
SR091
Max Speed
3,508.32 RPM
Air Flow
301 - 1,782 m³/h
Max Pressure
700 mbar
SR113
Max Speed
3,009.17 RPM
Air Flow
346 - 1,860 m³/h
Max Pressure
1,000 mbar
SR124
Max Speed
3,506.74 RPM
Air Flow
459 - 2,426 m³/h
Max Pressure
500 mbar
SR142
Max Speed
3,008.51 RPM
Air Flow
472 - 2,313 m³/h
Max Pressure
800 mbar
SR160
Max Speed
3,012.66 RPM
Air Flow
472 - 2,686 m³/h
Max Pressure
1,000 mbar
SR170
Max Speed
3,008.23 RPM
Air Flow
606 - 2,748 m³/h
Max Pressure
700 mbar
SR220
Max Speed
3,006.31 RPM
Air Flow
828 - 3,703 m³/h
Max Pressure
700 mbar
SR272
Max Speed
2,007.31 RPM
Air Flow
1,000 - 2,993 m³/h
Max Pressure
1,000 mbar
SR295
Max Speed
3,005.03 RPM
Air Flow
1,227 - 4,979 m³/h
Max Pressure
500 mbar
SR363
Max Speed
2,006.43 RPM
Air Flow
1,451 - 3,992 m³/h
Max Pressure
1,000 mbar
SR500
Max Speed
2,003.39 RPM
Air Flow
539 - 5,536 m³/h
Max Pressure
700 mbar
SR500+
Max Speed
-
Air Flow
-
Max Pressure
-
KSR650
Max Speed
-
Air Flow
-
Max Pressure
-
KSR800
Max Speed
1,330.72 RPM
Air Flow
5,150 - 8,630 m³/h
Max Pressure
1,000 mbar
KSR900
Max Speed
1,349.37 RPM
Air Flow
5,835 - 10,865 m³/h
Max Pressure
700 mbar
KSR1000
Max Speed
1,189.81 RPM
Air Flow
7,870 - 12,000 m³/h
Max Pressure
500 mbar
